Stainless Steel Ball Valves



Model: V1

Model: V1 SPECIFICATIONS

One Piece Reduced Port 316 Stainless Steel Ball Valve

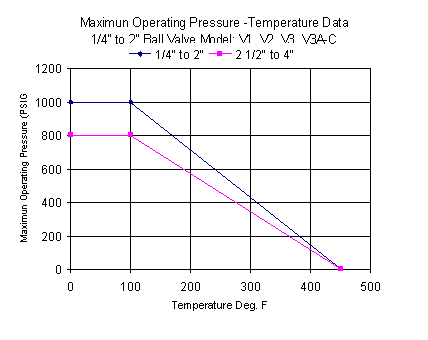

Maximum Operating Pressure: 1000 PSIG @ 100ºF WOG*

Operating Temperature Range: -60 to 450ºF*

End Connections: NPT Threaded

MAIN PARTS AND MATERIALS

NO

PART NAME

MATERIAL

QTY

1

SEAT

PTFE

2

2

BALL

SS316/CF8M

1

3

JOINT GASKET

PTFE

1

4

CAP

SS316

1

5

BODY

SS316

1

6

STEM

SS316

1

7

THRUST WASHER

PTFE

1

8

STEM PACKING

PTFE

1

9

GLAND NUT

SS304

1

10

STEM WASHER

SS304

1

11

STEM NUT

SS304

1

12

HANDLE COVER

PLASTIC

1

13

HANDLE

SS304

1

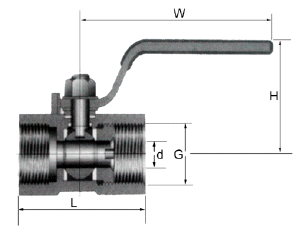

DIMENSIONS (mm)

SIZE
d
L
H
W
Wt (kg)
1/4"
5.0
39
35
64
0.07
3/8"
7.0
44
37
70
0.10
1/2"
9.2
56.5
43.5
90
0.16
3/4"
12.5
58
47
90
0.25
1"
15.0
70
50
103
0.43
11/4"
20.0
78
57
103
0.70
11/2"
24.5
83
69
127
0.83
2"
32.0
100
74.5
127
1.5
